Grate 30

Designed to complement conventional hearths and custom spaces - its bold appearance and elegant flame make it ideal for reinvigorating an old, disused fireplace. And it’s equally at home in both modern and traditional settings. Slightly shorter in length to Grate 36, Grate 30 is available for narrower fireplace setting. It accommodates the EcoSmart Fire XL500 Burner which is perfect for those looking to incorporate a long flame style into a compact setting.

Shop Now

Specifications

Application

Indoor

Dimensions

L 762 mm [30 in]
W 330 mm [13 in]
H 156 mm [6.1 in]

Weight

15.98 kg [35.2 lb]

Materials

Fluid™ Concrete Surround; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner

Colour

Model

Graphite

Burner

Stainless Steel

Efficiency

Burner Information
Burner Configuration Compatible with this model	XL500
Volume Capacity How much fuel	5 L 1.3 gal
Thermal Output How much heat it creates	11,430 BTU/h 12.06 MJ/h - 3 kW
Burn Time How long it lasts	10-13 h 5 L [1.3 gal]
Fuel Consumption How much fuel it consumes on MAX	0.5 L/h 0.13 gal/h
Heats on Average How much space it heats	40 m² 431 ft²
Minimum Room Size Required for this burner	80 m³ 2,825 ft³

Accessories

Included

XL Baffles

XL Baffles are used to regulate and further stabilise the flame increasing fuel efficiency of the burner.

Jerry Can 5L

The Jerry Can allows for the safe storing/decanting of e-NRG ethanol.

Fire Lighter

This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.

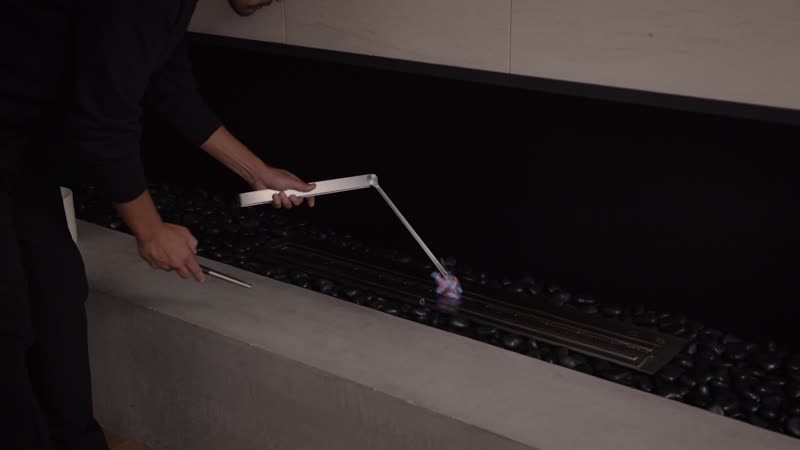

Lighting Rod

The Lighting Rod enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.

Bottle Adaptor

The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.

thumbnail: esf-grate-30-fireplace-grate-private-residence.jpg

Convert an existing fireplace in minutes

Transforming an existing wood burning fire into a clean burning bioethanol fireplace is easy. Simply install the grate on a level platform and fill it with liquid bioethanol. Then sit back and relax.

Minimum fuss

Delivering the ambience of an open fire – but minus the mess, odour, sparks and soot due to the clean-burning, eco-friendly e-NRG bioethanol.

Tested worldwide

All burners (excluding VB2) are OMNI-Test Laboratories Inc. listed in accordance with UL 1370-16 “Standard for Unvented Alcohol Fuel Burning Decorative Appliances” in the USA, are certified by BSI in accordance with EN16647 (excluding VB2), and comply with the ACCC Safety Mandate for Australia.

Fluid™ Concrete Technology

Our proprietary technology offers a streamlined yet sophisticated system that delivers exceptionally robust, handcrafted products.

No gas or electricity connection

All the fuel is housed within the ethanol burners internal reservoir so you don't have to run pipes or cables through your walls.

thumbnail: esf-grate-18-fireplace-grate-commercial.jpg

Available in
Three Sizes

The Grate Series is available in three sizes – the smallest, Grate 18 (with AB8 Burner), the Grate 30 (with XL500 Burner) and the largest Grate 36 (XL700 Burner).
