Ark 40 Fire Pit Table

A curvaceous fire pit table that brings friendship and fire together

/ Ark 40

Ark 40

Natural hues, weatherproof materials and industrial design features combine to create a striking fire solution. With a wide lip to perch a drink on, and an unobtrusive shape that suits all types of décors and settings, EcoSmart’s Ark 40 fire furniture creates an instant talking point – even when it is not in use.

Shop Now

Specifications

Application

Indoor or Outdoor

Dimensions

L 1,000 mm [39.4 in]
W 1,000 mm [39.4 in]
H 339 mm [13.3 in]

Weight

Concrete 58.26 kg [128.4 lb]
Teak 56.03 kg [123.5 lb]

Materials

Fluid™ Concrete or Teak Wood Surround; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner

Colour

Surround

Natural

Graphite

Bone

Natural Teak

Burner

Stainless Steel

Black

Liquid Propane and Natural Gas are suited for Outdoor use only. Bioethanol is suited for both Indoor/Outdoor use; however, additional parts are REQUIRED for indoor use.
The weight includes the burner and black glass charcoal.

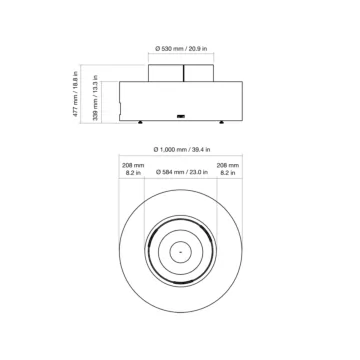

Line drawings show model with the Fire Screen installed.

Efficiency

Burner Information	Bioethanol	Liquid Propane	Natural Gas
Burner Configuration Compatible with this model	AB8	G16T (LP)	G16T (NG)
Volume Capacity How much fuel	8 L 2.1 gal	N/A	N/A
Thermal Output How much heat it creates	20,433 BTU/h 21.56 MJ/h - 6 kW	65,000 BTU/h 68.58 MJ/h - 19 kW	65,000 BTU/h 68.58 MJ/h - 19 kW
Burn Time How long it lasts	7-9 h 8 L [2.1 gal]	8-20 h Tank	Unlimited
Fuel Consumption How much fuel it consumes on MAX	1.1 L/h 0.29 gal/h	N/A	N/A
Heats on Average How much space it heats	60 m² 646 ft²	Outdoor Only	Outdoor Only
Minimum Room Size Required for this burner	116 m³ 4,097 ft³	Outdoor Only	Outdoor Only

Videos

How to assemble and operate your AB Series ethanol burner

The product shown in this video is for demonstration purposes only and may not represent the exact model you are viewing.

How to assemble your glass cover plate

The product shown in this video is for demonstration purposes only and may not represent the exact model you are viewing.

How to install the Glass Fire Screen

Accessories

Included

R530 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

AB8 Efficiency Ring

AB8 Efficient Rings are used to regulate and further stabilise the flame increasing fuel efficiency of the burner.

Ethanol

Jerry Can 5L

The Jerry Can allows for the safe storing/decanting of e-NRG ethanol.

Ethanol

Fire Lighter

This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.

Ethanol

Lighting Rod

The Lighting Rod enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.

Ethanol

Bottle Adaptor

The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.

Ethanol

Black Glass Charcoal

The Black Glass Charcoal is made from high-quality tempered glass and has been designed to withstand harsh weather and temperatures of up to 1300ºF/700ºC.

Optional

R530 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

Concrete

R400 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

R20 Cover Plate

Transform the burner section of your Ecosmart fire pit table, easily turning it into a flat, usable coffee table surface.

RT40 All-Season Cover

These Outdoor Fire Covers help to protect your investment. Made from UV coated Oxford fabric they repel dust, water and other debris for easy maintenance.

AB8 Silicone Burner Cover

Silicone Burner Covers protect ethanol burners from the elements when the EcoSmart model isn’t in use.

thumbnail: esf-ark-40-fire-table-commercial-space.jpg

All-weather materials

Our finishes are extremely durable and weatherproof. We use a blend of green cement, recycled materials, and Fluid™ Concrete Technology in our lightweight concrete finish which resists scratches, stains, mould, and mildew. Our wood tables are made from Grade A teak, a naturally durable wood that withstands extreme weather without losing its strength or beauty.

Three fuel choices

Eco-friendly ethanol can be installed in just minutes and can be relocated without any limitations - indoors or out. Natural Gas delivers not only the lowest cost of operation but requires no refueling of any type, ever. Liquid Propane is readily available and powers with the simple push of a button.

thumbnail: esf-ark-40-fire-table-starfire.jpeg

Generous table space

The table's large surface area is perfect for setting down wine glasses and appetizers, making it ideal for hosting a party or gathering.

Smokeless flame

Relish in the warmth of a fire that creates an ambience without the smoke, soot, or mess associated with wood.

Organic colours

Choose from a natural, blonde teak wood or the sleek, industrial-style concrete colours of natural, graphite or bone.

Articulating feet

Featuring 360º height-adjustable articulating feet to help you achieve a perfectly level and stable position on your flooring.

thumbnail: esf-ark-40-teak-outdoor-elegance-5912-with-screen.jpg

Tested worldwide

This model complies with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL 1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant for bioethanol burners. LP/NG burners are UL/ULC listed to ANSI Z21.97-2017 and CSA 2.41-2017, and Gas Appliance Regulation 2016/426 as it applies to EU (CE) and UK (UKCA).
