Manhattan 50 Fire Pit Table

A fire table that combines ingenuity with functionality

/ Manhattan 50

Manhattan 50

Taking its cues from one of the world's most densely populated cities, where real estate prices are sky-high and square footage comes at a premium price, is a fire table that combines ingenuity with functionality. EcoSmart's Manhattan Fire Table knows how to make the most of a small space.

Shop Now

Specifications

Application

Indoor or Outdoor

Dimensions

L 1,270 mm [50 in]
W 762 mm [30 in]
H 296 mm [11.7 in]

Weight

Concrete 51.74 kg [114.1 lb]
Teak 50.9 kg [112.2 lb]

Materials

Fluid™ Concrete or Teak Wood Surround; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner

Colour

Surround

Natural

Graphite

Bone

Natural Teak

Burner

Stainless Steel

Black

Liquid Propane and Natural Gas are suited for Outdoor use only. Bioethanol is suited for both Indoor/Outdoor use; however, additional parts are REQUIRED for indoor use.
The weight includes the burner and black glass charcoal.

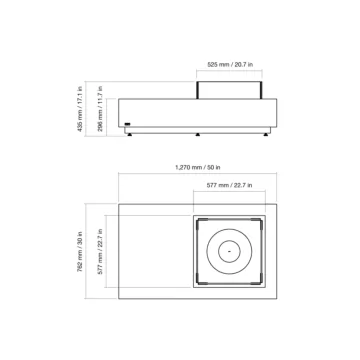

Line drawings show model with the Fire Screen installed.

Efficiency

Burner Information	Bioethanol	Liquid Propane	Natural Gas
Burner Configuration Compatible with this model	AB8	G16T (LP)	G16T (NG)
Volume Capacity How much fuel	8 L 2.1 gal	N/A	N/A
Thermal Output How much heat it creates	20,433 BTU/h 21.56 MJ/h - 6 kW	65,000 BTU/h 68.58 MJ/h - 19 kW	65,000 BTU/h 68.58 MJ/h - 19 kW
Burn Time How long it lasts	7-9 h 8 L [2.1 gal]	8-20 h Tank	Unlimited
Fuel Consumption How much fuel it consumes on MAX	1.1 L/h 0.29 gal/h	N/A	N/A
Heats on Average How much space it heats	60 m² 646 ft²	Outdoor Only	Outdoor Only
Minimum Room Size Required for this burner	116 m³ 4,097 ft³	Outdoor Only	Outdoor Only

Videos

How to assemble and operate your AB Series ethanol burner

The product shown in this video is for demonstration purposes only and may not represent the exact model you are viewing.

How to assemble your glass cover plate

The product shown in this video is for demonstration purposes only and may not represent the exact model you are viewing.

How to install the Glass Fire Screen

Accessories

Included

S500 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

Teak

AB8 Efficiency Ring

AB8 Efficient Rings are used to regulate and further stabilise the flame increasing fuel efficiency of the burner.

Ethanol

Jerry Can 5L

The Jerry Can allows for the safe storing/decanting of e-NRG ethanol.

Ethanol

Fire Lighter

This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.

Ethanol

Lighting Rod

The Lighting Rod enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.

Ethanol

Bottle Adaptor

The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.

Ethanol

Black Glass Charcoal

The Black Glass Charcoal is made from high-quality tempered glass and has been designed to withstand harsh weather and temperatures of up to 1300ºF/700ºC.

Optional

S500 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

Concrete

R400 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

Concrete

S22 Cover Plate

Transform the burner section of your Ecosmart fire table, easily turning it into a flat, usable coffee table surface.

LT50 All-Season Cover

These Outdoor Fire Covers help to protect your investment. Made from UV coated Oxford fabric they repel dust, water and other debris for easy maintenance.

AB8 Silicone Burner Cover

Silicone Burner Covers protect ethanol burners from the elements when the EcoSmart model isn’t in use.

thumbnail: esf-manhattan-50-fire-table-private-residence.jpg

Perfect for entertaining

Fire tables bring everyone together and provide space for drinks and plates of food with a mesmerising flame as the centrepiece.

Versatile and relocatable

When you select Bioethanol or Liquid Propane as your fuel source you’ll never be tied down! With zero hard utility connections, relocating your fire is a breeze. Entertain on your own terms with EcoSmart Fire.

thumbnail: mad-manhattan-50-fire-table-detail.jpg

All-weather materials

Our concrete finish is crafted from a blend of green cement and recycled materials for a strong yet lightweight table. Specially formulated with Fluid™ Concrete Technology, our fire tables resist scratches, stains, mould and mildew. The smooth finish repels dust and debris, making cleanup easier.

Organic colours

Choose from a natural, blonde teak wood or the sleek, industrial-style concrete colours of natural, graphite or bone.

Smokeless flame

Relish in the warmth of a fire that creates an ambience without the smoke, soot, or mess associated with wood.

thumbnail: esf-manhattan-50-fire-table-private-residence-balmain.jpg

Generous table space

The table's large surface area is perfect for setting down wine glasses and appetizers, making it ideal for hosting a party or gathering.

Articulating feet

Featuring 360º height-adjustable articulating feet to help you achieve a perfectly level and stable position on your flooring.

Three fuel choices

Select from three fuel types to suit your needs. Eco-friendly ethanol can be installed in just minutes and can be relocated without any limitations - indoors or out. Natural Gas delivers not only the lowest cost of operation but requires no refueling of any type, ever. Liquid Propane is readily available and powers with the simple push of a button.

thumbnail: esf-manhattan-50-fire-table-ysm-house.jpg

Durability

Crafted from weather-resistant Fluid™ Concrete, an incredibly strong yet relatively lightweight material. Features a stain and impact-resistant barrier that protects it from environmental weathering - even under extreme conditions and long UV exposure.
